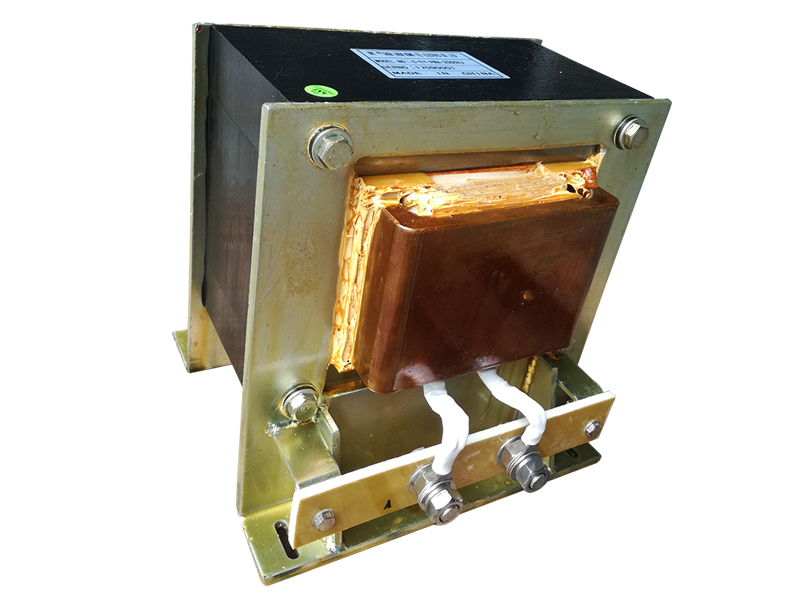

Magnetizing equipment transformer

Product description:
1.The product is specially designed with consideration in specific applications. It can provide the large output current similar to output short-circuit, thus making the magnet fully magnetized in short time.
2.The product has good resistance to short circuit impact.

Detailed introduction

Product description:

1.The product is specially designed with consideration in specific applications. It can provide the large output current similar to output short-circuit, thus making the magnet fully magnetized in short time.

2.The product has good resistance to short circuit impact.



Technical parameters:

Technical Parameters of HMT Transformer

Item

Standard Value

Condition

1

Capacity

500VA-100KVA

2

Voltage range

1000V - 3000V

3

Current range

100A - 3000A

4

Insulation resistance

>100MΩ

DC1000V

5

Dielectric strength

<20mA

AC5.0KV 60s

6

Efficiency

≥95%

Full load

7

Noise

≤70dB

1m away from transformer

8

Temperature rise

≤100K

Full load, self cooling

9

Insulation class

Class H (180℃)

10

Ambient temperature

0℃ - 35℃

11

Design standard

GBT10228
